WSC452720R00FEA | Vishay
Resistor, wirewound, SMD 4527, 20 Ω, 2 W, ±1 %, WSC452720R00FEA
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: 38 Weeks **

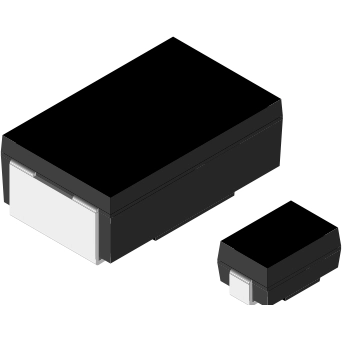

SMD wire-wound resistors, 0.5 to 3.0 W, tolerance 1.0 %, type Vishay/Dale WSC.
Sealed, ultra-stable at different environment conditions
2.0 W, size 4527, type WSC4527.
Technical specifications
| ohmscher Widerstand | 20 Ω | |
| Bauform | SMD 4527 | |

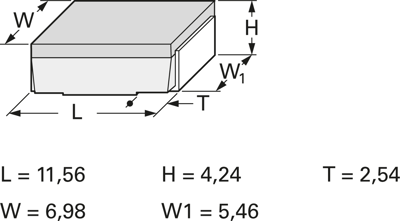

| Höhe | 4.24 mm | |
| Länge | 11.56 mm | |
| Leistung | 2 W | |
| max. Temperatur | 275 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Drahtgewickelt | |
| Temperaturkoeffizient | ±20 ppm/K |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85331000 |
| Originalverpackung | Rolle mit 1.200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
