WSC6927R5000FEA | Vishay

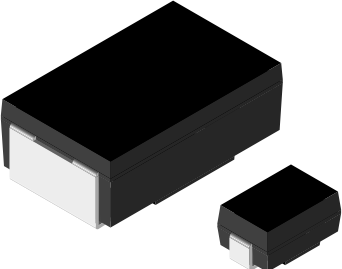

Resistor, wirewound, SMD 6927, 500 mΩ, 3 W, ±1 %, WSC6927R5000FEA
Unit Price (€ / pc.)
2.5942 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
SMD wire-wound resistors, 0.5 to 3.0 W, tolerance 1.0 %, type Vishay/Dale WSC.
Sealed, ultra-stable at different environment conditions
3.0 W, size 6927, type WSC6927.
Technical specifications
| ohmic resistance | 500 mΩ | |
| Design | SMD 6927 | |

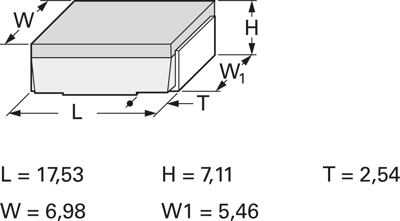

| Height | 7.11 mm | |
| Length | 17.53 mm | |
| Power | 3 W | |
| max. operating temperature | 275 °C | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Technology | Drahtgewickelt | |
| Temperature coefficient | ±90 ppm/K |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85331000 |
| Original Packaging | Rolle mit 725 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
