WSL2010R4700FEA | Vishay

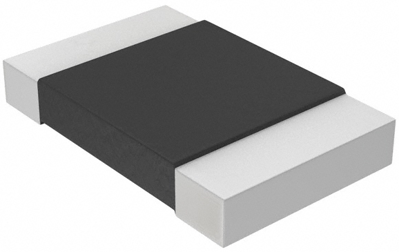

Resistor, metal strip, SMD 2010 (5025), 470 mΩ, 0.5 W, ±1 %, WSL2010R4700FEA
Unit Price (€ / pc.)
0.2285 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
SMD metal strip resistors, 0.125 to 1.0 W, tolerance 1.0 %, series Power Metal Strip, type Vishay/Dale WSL.
Low self-inductance, for current measurements and pulse applications
0.5 W, size 2010, type WSL2010.

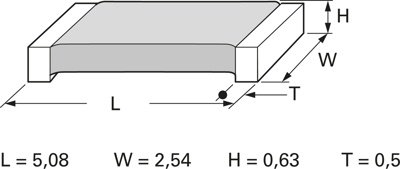

Technical specifications
| ohmscher Widerstand | 470 mΩ | |
| Bauform | SMD 2010 (5025) | |
| Breite | 2.5 mm | |
| Höhe | 0.63 mm | |
| Länge | 5.08 mm | |
| Leistung | 0.5 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallband | |
| Temperaturkoeffizient | ±75 ppm/K |
Download
Logistics
| Ursprungsland | IL |
| Zolltarifnummer | 85331000 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
