WSR5R1000FEA | Vishay

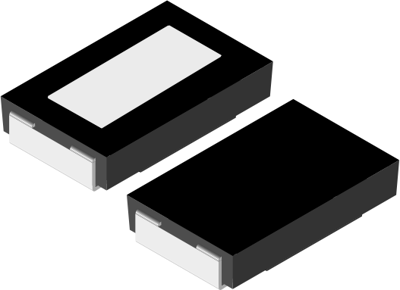

Resistor, metal strip, SMD 4527, 100 mΩ, 5 W, ±1 %, WSR5R1000FEA
Unit Price (€ / pc.)
2.142 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
SMD metal strip resistors, size 4527, 2.0 to 5.0 W, tolerance 1.0 %, series Power Metal Strip, type Vishay/Dale WSR.
Encapsulated design for high temperatures, low self-inductance (0.5 bis 5.0 nH), for current measurements and pulse applications
5.0 W, type High Power WSR-5.
Technical specifications
| ohmic resistance | 100 mΩ | |

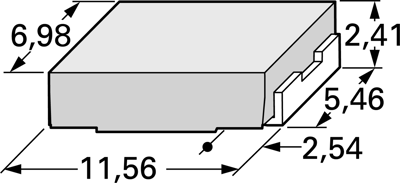

| Design | SMD 4527 | |
| Height | 2.41 mm | |
| Length | 11.56 mm | |
| Power | 5 W | |
| max. operating temperature | 275 °C | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Technology | Metallband | |
| Temperature coefficient | ±75 ppm/K |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85331000 |
| Original Packaging | Rolle mit 1.500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
