TR3C227K6R3C0225 | Vishay
Talantum capacitor, SMD, C, 220 µF, 6.3 V, ±10 %, TR3C227K6R3C0225
Unit Price (€ / pc.)
0.0381 € *
Available: 0 pcs.
Leadtime: On Request **
SMD, Tantalum capacitor, TR3C227K6R3C0225, Vishay
Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR
FEATURES
- Low ESR
- High ripple current carrying capability
- Compliant terminations
- Compatible with “high volume” automatic pick and place equipment
Technical Data
- Capacity: 220 µF
- Nominal voltage: 6.3 V
- Size: C
- Tolerance: ±10 %
Technical specifications
| Design | SMD | |

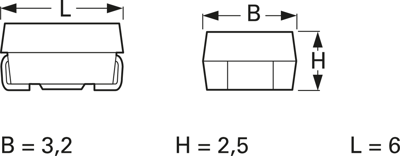

| Size | C | |
| ESR (Equivalent Series Resistance) | 225 mΩ | |
| Capacity | 220 µF | |
| Length | 6 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 6.3 V | |
| Ripple current | 700 mA | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85322100 |
| MSL | MSL 1 |
| Original Packaging | Rolle mit 500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
