MBB02070C1202FC100 | Vishay
Metal film resistor, 12 kΩ, 0.4 W, ±1 %, MBB02070C1202FC100
Order No.: 03E7825
EAN: 4099879653642
MPN:
MBB02070C1202FC100
12KOhm TC50 ±1% 0207/ 0,6W@70C
Series: MBB 0207
Unit Price (€ / pc.)
0.0512 € *
Available: 0 pcs.
Leadtime: On Request **

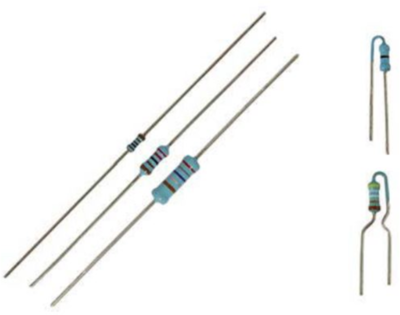

Metal film resistor, MBB02070C1202FC100, Vishay
The MBB02070C1202FC100 is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.
Features
- Established reliability
- Advanced thin film technology
- Intrinsic sulfur resistance
- Single lot date code
Applications
- Military
- Avionics
- Space
Technical specifications
| ohmic resistance | 12 kΩ | |
| Version | Metall-Schichtwiderstand | |
| Design | axial | |
| diameter | 2.5 mm | |
| Isolation voltage | 75 V | |
| Length | 6.5 mm | |
| Power | 0.4 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85331000 |
| Original Packaging | Bulk mit 1.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
