MBB0207VD1002BC100 | Vishay
Metal film resistor, 10 kΩ, 0.4 W, ±0.1 %, MBB0207VD1002BC100
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

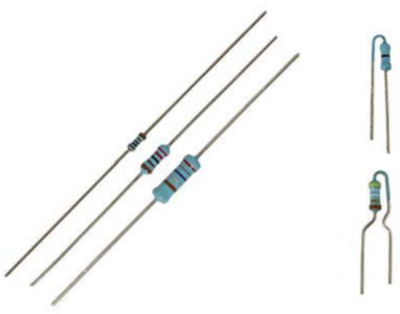

Metal film resistor, MBB0207VD1002BC100, Vishay
The MBB0207VD1002BC100 is a leaded metal film resistor with established reliability. This product is the perfect choice for all high-reliability applications typically found in military, aircraft and spacecraft electronics.
Features
- Established reliability
- Advanced thin film technology
- Intrinsic sulfur resistance
- Single lot date code
Applications
- Military
- Avionics
- Space
Technical specifications
| ohmic resistance | 10 kΩ | |
| Version | metal film resistor | |
| Design | axial | |
| diameter | 2.5 mm | |
| Isolation voltage | 75 V | |
| Length | 6.5 mm | |
| Power | 0.4 W | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±0.1 % | |
| Temperature coefficient | ±25 ppm/K |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
