MRS25000C2008FC100 | Vishay
Thin film resistor, 2 Ω, 0.6 W, ±1 %, MRS25000C2008FC100
Unit Price (€ / pc.)
0.1428 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Thin Film Resistor, MRS25000C2008FC100, Vishay
Thin Film Resistor, 2 Ω, 0.6 W, ±1 %

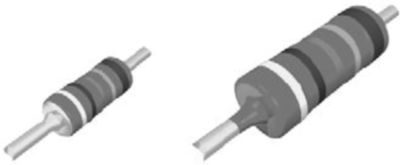

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wire of electrolytic copper is welded to the end-caps. This resistor is coated with lacquer which provides electrical, mechanical, and climatic protection. Four or five color code rings designate the resistance value and tolerance according to IEC 60062.
Features
- Professional resistors in small outlines
- Low noise
Applications
- All general purpose applications
Technical specifications
| ohmic resistance | 2 Ω | |
| Version | Dünnschichtwiderstand | |
| Design | axial | |
| diameter | 2.5 mm | |
| Isolation voltage | 75 V | |
| Length | 6.5 mm | |
| Power | 0.6 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85332100 |
| Original Packaging | Rolle mit 1.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
