MRS25000C3481FCT00 | Vishay
Thin film resistor, 3.48 kΩ, 0.6 W, ±1 %, MRS25000C3481FCT00
Unit Price (€ / pc.)
0.0428 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Thin Film Resistor, MRS25000C3481FCT00, Vishay
Thin Film Resistor, 3.48 kΩ, 0.6 W, ±1 %

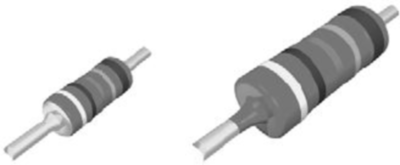

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wire of electrolytic copper is welded to the end-caps. This resistor is coated with lacquer which provides electrical, mechanical, and climatic protection. Four or five color code rings designate the resistance value and tolerance according to IEC 60062.
Features
- Professional resistors in small outlines
- Low noise
Applications
- All general purpose applications
Technical specifications
| ohmscher Widerstand | 3.48 kΩ | |
| Ausführung | Dünnschichtwiderstand | |
| Bauform | axial | |
| Durchmesser | 2.5 mm | |
| Isolationsspannung | 75 V | |
| Länge | 6.5 mm | |
| Leistung | 0.6 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±1 % | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85331000 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
