ZCM204BKD07-1K2AA | Vitrohm

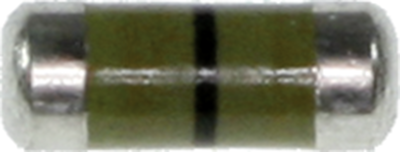

Resistor, metal film, SMD 0204, mini MELF, 1.2 kΩ, 0.4 W, ±0.1 %, ZCM204BKD07-1K2AA
Unit Price (€ / pc.)
0.1202 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
SMD metal film resistor, ZCM204BKD07-1K2AA, Vitrohm
Resistor, Metal film, SMD 0204, Mini-MELF, 1.2 kΩ, 0.4 W, ±0,1 %
Features
- Precision MELF resistor
- Advanced MELF technology
- Excellent stability in different environmental conditions
- Best in class pulse load capability
- AEC - Q200 Qualified
- RoHs & REACH compliant
Technical specifications
| ohmscher Widerstand | 1.2 kΩ | |
| Bauform | SMD 0204 | |

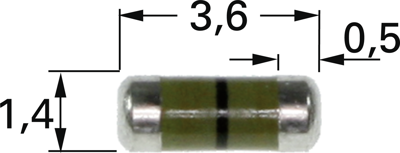

| Durchmesser | 1.4 mm | |
| Gehäuse | Mini-MELF | |
| Länge | 3.6 mm | |
| Leistung | 0.4 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±0,1 % | |
| Technologie | Metallfilm | |
| Temperaturkoeffizient | ±25 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Bulk mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
