ZCM204FKE07-16KAA | Vitrohm

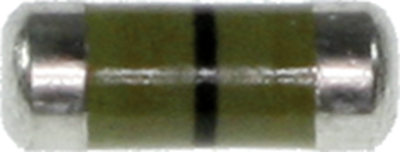

Resistor, metal film, SMD 0204, mini MELF, 16 kΩ, 0.4 W, ±1 %, ZCM204FKE07-16KAA
Unit Price (€ / pc.)
0.0488 € *
Available: 0 pcs.
Available in 4 Days: 3,000 pcs.
Leadtime: 65 Weeks **
SMD metal film resistor, ZCM204FKE07-16KAA, Vitrohm
Resistor, Metal film, SMD 0204, Mini-MELF, 16 kΩ, 0.4 W, ±1 %
Features
- Precision MELF resistor
- Advanced MELF technology
- Excellent stability in different environmental conditions
- Best in class pulse load capability
- AEC - Q200 Qualified
- RoHs & REACH Compliant
Technical specifications
| ohmscher Widerstand | 16 kΩ | |
| Bauform | SMD 0204 | |

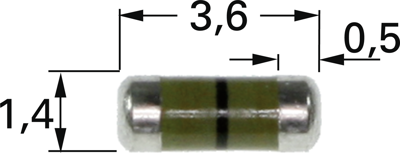

| Durchmesser | 1.4 mm | |
| Gehäuse | Mini-MELF | |
| Länge | 3.6 mm | |
| Leistung | 0.4 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfilm | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | PT |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Bulk mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
