ZCM207FKE07-100RAA | Vitrohm
Resistor, metal film, SMD 0207, MELF, 100 Ω, 1 W, ±1 %, ZCM207FKE07-100RAA
Unit Price (€ / pc.)
0.2785 € *
Available: 2,693 pcs.
Leadtime: 15 Weeks **
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2785 €
10 pcs.
0.1737 €
50 pcs.
0.1238 €
250 pcs.
0.1047 €
1000 pcs.
0.0881 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD metal film resistor, ZCM207FKE07-100RAA, Vitrohm
Resistor, Metal film, SMD 0207, MELF, 100 Ω, 1 W, ±1 %
Features
- Precision MELF resistor
- Advanced MELF technology
- Excellent stability in different environmental conditions
- Best in class pulse load capability
- AEC - Q200 Qualified
- RoHs & REACH compliant
Technical specifications
| ohmscher Widerstand | 100 Ω | |
| Bauform | SMD 0207 | |

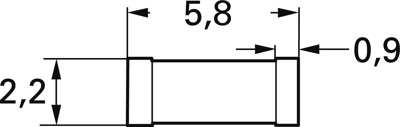

| Durchmesser | 2.2 mm | |
| Gehäuse | MELF | |
| Länge | 5.8 mm | |
| Leistung | 1 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfilm | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | PT |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 1.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
