ZCM207FKE07-560RAA | Vitrohm
Resistor, metal film, SMD 0207, MELF, 560 Ω, 1 W, ±1 %, ZCM207FKE07-560RAA
Unit Price (€ / pc.)
0.1571 € *
Available: 0 pcs.
Next delivery: 3,000 pcs. on 2025-07-04
Leadtime: 14 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1571 €
10 pcs.
0.1131 €
100 pcs.
0.0964 €
500 pcs.
0.0833 €
1000 pcs.
0.0762 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD metal film resistor, ZCM207FKE07-560RAA, Vitrohm
Resistor, Metal film, SMD 0207, MELF, 560 Ω, 1 W, ±1 %
Features
- Precision MELF resistor
- Advanced MELF technology
- Excellent stability in different environmental conditions
- Best in class pulse load capability
- AEC - Q200 Qualified
- RoHs & REACH compliant
Technical specifications
| ohmic resistance | 560 Ω | |
| Design | SMD 0207 | |

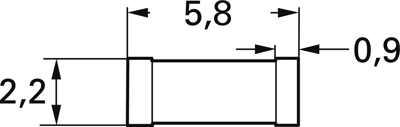

| diameter | 2.2 mm | |
| Enclosure | MELF | |
| Length | 5.8 mm | |
| Power | 1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | Metallfilm | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85332100 |
| Original Packaging | Rolle mit 1.500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
