CRP200JT-52-2R2AA | Vitrohm

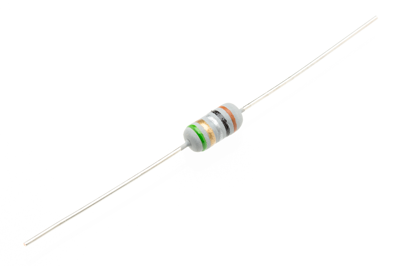

Wirewound resistor, 2.2 Ω, 2 W, ±5 %, CRP200JT-52-2R2AA
Unit Price (€ / pc.)
0.2975 € *
Available: 73 pcs.
Leadtime: 8 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2975 €
100 pcs.
0.2273 €
500 pcs.
0.1821 €
1000 pcs.
0.1499 €
5000 pcs.
0.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound resistors, 2.0 and 3.0 W, 5.0 % tolerance, type Vitrohm CRP252-1/CRP254-1.
Axial, pulse-proof, varnished ceramic (UL 94-V0); Temperature coefficient: TC 120. Insulation voltage (1.0 min): max. 500 V. Operating temperatures: –55 to +350 °C. Climate category: 55/350/56. Load derating: linear +70 to +350 °C (0 W). Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Type CRP252-1.
Rated load at +40/+70 °C: 2.0/1.6 W. Thermal resistance: 60 K/W. Dimensions: 4.0 x 9.7 mm.
Type: 2R2
Technical specifications
| ohmscher Widerstand | 2.2 Ω | |
| Ausführung | Drahtwiderstand | |
| Bauform | axial | |
| Durchmesser | 4 mm | |
| Isolationsspannung | 500 V | |
| Länge | 9.7 mm | |
| Leistung | 2 W | |
| max. Temperatur | 350 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±120 ppm/K |
Download
Logistics
| Ursprungsland | PT |
| Zolltarifnummer | 85332100 |
| MSL | MSL 1 |
| Originalverpackung | Ammopack mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
