CRS400JT-73-390RAA | Vitrohm

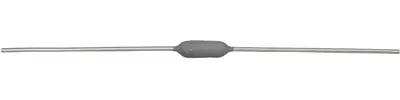

Wirewound resistor, 390 Ω, 4 W, ±5 %, CRS400JT-73-390RAA
Unit Price (€ / pc.)
0.6069 € *
Available: 156 pcs.
Leadtime: 65 Weeks **
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
100 pcs.
0.4522 €
500 pcs.
0.3570 €
1000 pcs.
0.2975 €
3000 pcs.
0.2570 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound resistors, 1.1 to 5.0 W, tolerance 5.0 %, type Vitrohm CR.
Axial, ceramic substrate, varnished, non-insulated. Dielectric strength (1
Rated load 4.0 W, type CR 256-0.
Technical specifications
| ohmscher Widerstand | 390 Ω | |
| Ausführung | Drahtwiderstand | |
| Bauform | axial | |
| Durchmesser | 5.5 mm | |
| Isolationsspannung | 75 V | |
| Länge | 17 mm | |
| Leistung | 4 W | |
| max. Temperatur | 350 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±10 ppm/K |
Download
Logistics
| Ursprungsland | PT |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Ammopack mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
