3924 | Vogt

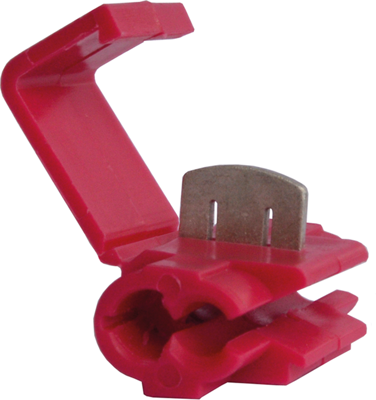

Branch terminal, uninsulated, 0.34-1.0 mm², AWG 22 to 18, red, 20 mm, 3924
Order No.: 09H2900
EAN: 4099889604412
MPN:
3924
Unit Price (€ / pc.)
0.1261 € *
Available: 0 pcs.
Next delivery: 900 pcs. on 2025-03-05
Leadtime: 2 Weeks **
Branch terminal, 3924, Vogt
Branch terminal for low-voltage power cables is suitable for establishing an electrical connection by means of mechanical fixing. The current flow of the trunk cable is ensured by pressing a conventional pair of pliers together with the conductors of the branch cable. The trunk cable is positioned so that the upper toothed edge in the housing cuts through the insulation of the cable when it is pressed together and the embedded contact pieces thus establish the electrical connection between the branch cables.
Applications
- Lighting
- Electronics
- Machinery industry
Technical specifications
| Ausführung | Abzweigklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 18 | |
| Farbe | rot | |
| Isoliert | No | |
| Länge | 20 mm | |
| Leiterquerschnitt | 0,34-1,0 mm² | |
| Material | Messing | |
| Schrumpfschlauch | No |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
