3924F | Vogt
Branch terminal, uninsulated, 0.5-1.0 mm², AWG 22 to 18, red, 37 mm, 3924F
Order No.: 09H2912
EAN: 4099889604443
MPN:
3924F
Unit Price (€ / pc.)
0.1392 € *
Available: 104 pcs.
Leadtime: 2 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1392 €
50 pcs.
0.1309 €
*incl. VAT plus shipping costs
**Subject to prior sale

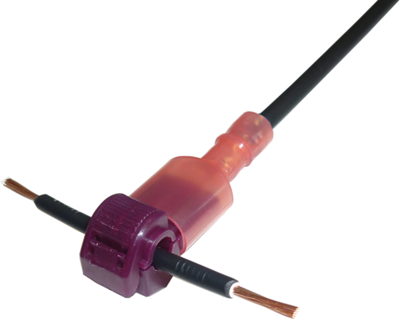

Branch terminal, 3924F, Vogt
Branch terminal for low-voltage power cables is suitable for establishing an electrical connection by means of mechanical fixing. The current flow of the trunk cable is ensured by pressing a conventional pair of pliers together with the conductors of the branch cable. The trunk cable is positioned so that the upper toothed edge in the housing cuts through the insulation of the cable when it is pressed together and the embedded contact pieces thus establish the electrical connection between the branch cables.
Applications
- Lighting
- Electronics
- Machinery industry
Technical specifications
| Version | branch terminal | |
| AWG cross-section | AWG 22 to 18 | |
| Colour | red | |
| Isolated | No | |
| Length | 37 mm | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | brass | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
