3856.67 | Vogt

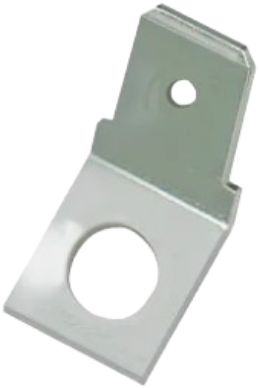

Faston plug, 6.3 x 0.8 mm, L 10.5 mm, uninsulated, angled, 3856.67
Order No.: 05F125
EAN: 4099889611199
MPN:
3856.67
Unit Price (€ / pc.)
0.1083 € *
Available: 15,606 pcs.
Next delivery: 13,810 pcs. on 2025-01-15
Leadtime: 1 Week **
Total Price:
5.41 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1083 €
100 pcs.
0.1012 €
500 pcs.
0.0928 €
1000 pcs.
0.0809 €
5000 pcs.
0.0738 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat plug, type Vogt 38.
Made of brass, pure tin-plated, not insulated, compliant with DIN 46342 part 1.
PCB mounting tabs, mating width 6.3 mm, type Vogt 38.
Technical attributes (type, mating width x mating thickness, dimension d): 3856.67, 6.3x0.8 mm, 4.3 mm
Technical specifications
| Connection | screw connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 10.5 mm | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46342 | |
| Plug width x plug thickness | 6.3 x 0.8 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
