3911 | Vogt
Faston plug, 6.3 x 0.8 mm, L 21.5 mm, insulated, straight, blue, 1.5-2.5 mm², AWG 16-14, 3911
Order No.: 05F473
EAN: 4099889611793
MPN:
3911
Unit Price (€ / pc.)
0.1964 € *
Available: 14 pcs.
Leadtime: 2 Weeks **
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1964 €
25 pcs.
0.1452 €
100 pcs.
0.1321 €
250 pcs.
0.1202 €
500 pcs.
0.1131 €
*incl. VAT plus shipping costs
**Subject to prior sale

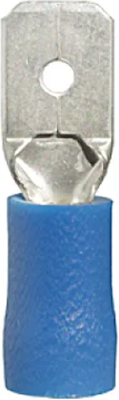

Flat plug with insulation, type Vogt 39.
Made of tinned brass; Mating width: 6.3 mm. Mating thickness: 0.8 mm. Insulation: PVC.

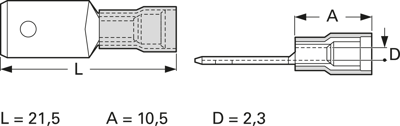

Technical attributes (type, conductor cross-section, color, dimensions): 3911, 1.5 to 2.5 mm², blue, L 21.5, A 10.5, D 2.3 mm
Technical specifications
| Connection | crimp connection | |
| Version | faston plug | |
| AWG cross-section | AWG 16-14 | |
| Design | straight | |
| Insulation colour | blue | |
| Isolated | Yes | |
| Length | 21.5 mm | |
| Cable cross-section | 1.5-2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46245 | |
| Plug width x plug thickness | 6.3 x 0.8 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369001 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
