392305S | Vogt
Insulated flat plug sleeve, 4.8 x 0.5 mm, 0.5 to 1.0 mm², AWG 22 to 18, brass, tin-plated, red, 392305S
Order No.: 07F300
EAN: 4099889618747
MPN:
392305S
Unit Price (€ / pc.)
0.2630 € *
Available: 457 pcs.
Leadtime: 17 Weeks **
Total Price:
6.57 € *
Price list
Quantity
Price per unit*
25 pcs.
0.2630 €
100 pcs.
0.2321 €
500 pcs.
0.2094 €
1000 pcs.
0.1856 €
5000 pcs.
0.1595 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat plug sleeve, 392305S, Vogt

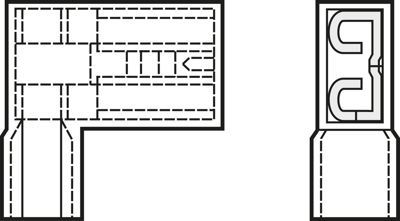

Receptacle, angled, fully insulated, made of tinned brass; Insulation (PA)/current rating: red 0.5 to 1.0 mm²/10 A, Thermal resistance: 55 to +105 °C.
Technical attributes:
Type: 392305s, mating width, mating thickness: 4.8 mm, 0.5 mm, color: red.
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 22 bis 18 | |
| Insulation colour | rot | |
| Suitable for | 4,8 x 0,5 mm | |
| Isolated | Yes | |
| Length | 13 mm | |
| Cable cross-section | 0,5 bis 1,0 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85389099 |
| Original Packaging | Beutel mit 500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
