NEUSC5SW20B | Volex

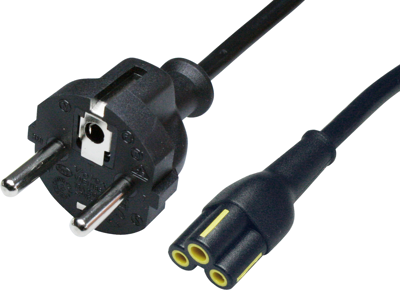

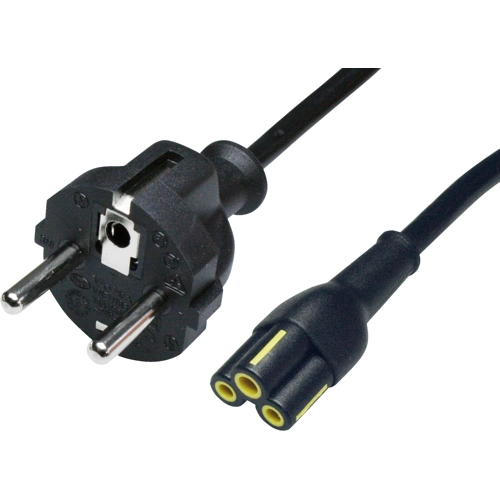

Device connection cable, Europe, plug type E + F, straight on C5 socket, straight, H03VV-F3G0.75 mm², black, 2 m, NEUSC5SW20B
Order No.: 88F805
EAN: 4099891098155
MPN:
NEUSC5SW20B
Nicht mehr im Sortiment
Unit Price (€ / pc.)
3.1297 € *
Available: 1,218 pcs.
Leadtime: On Request **
Appliance power cords, type Volex NEUSC5SW20B
With ground contact and double insulation; Cable: straight Schuko-style CEE (7) VII plug to straight IEC cord connector to EN 60320/C5. Cable type: H03VV-F3G0.75 mm². Rated voltage: 250 VAC. Rated current: 2.5 A.
Type: black, 2.0 m
Technical specifications
| Anschluss (1) | Stecker Typ E + F, gerade | |
| Anschluss (2) | C5-Dose, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | schwarz | |
| Kabel | H03VV-F3G0,75 mm² | |
| Kabellänge | 2 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 2.5 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 60320 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
