4118-00-33-09 | Volz
High-temperature resistant electrical adhesive tape, 9 x 0.069 mm, PI, amber/transparent, 33 m, 4118-00-33-09
Unit Price (€ / pc.)
33.8793 € *
Available: 27 pcs.
Leadtime: 1 Week **
Total Price:
33.88 € *
Price list
Quantity
Price per unit*
1 pcs.
33.8793 €
5 pcs.
31.7849 €
*incl. VAT plus shipping costs
**Subject to prior sale

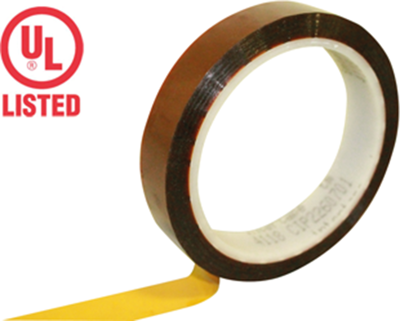

High temperature resistant electricians' adhesive tapes, type Volz IPG™ 4118.
Electrical film with strong adhesion for high sustained temperatures, good resistance to solvents and dampness; Thermal resistance: 250 °C (1000 h), 350 °C (10 h). Substrate: Kapton® polyamide foil. Adhesive compound: silicon, heat-drying. Color: amber transparent. Maximum tensile force: 130 N/25 mm. Substrate thickness: 25 µm (1.0 mil). Total thickness: 69 µm (2.7 mil). Elongation at fracture: 60 %. Adhesive strength (steel): 6.8 N/25 mm. Dielectric strength: 7000 V. Insulation class: H, 180 °C. Surface resistance: 10^6 ohm. Inflammability class: A1.0. Certifications: UL.
Type: 4118-00-33-09, 9.0 mm, amber transparent, 33 m roll
Technical specifications
| Version | high-temperature resistant electrical adhesive tape | |
| Width | 9 mm | |
| Thickness | 0.069 mm | |
| Colour | amber/transparent | |
| Adhesive cement | silicone | |
| Length | 33 m | |
| Material | PI | |
| max. operating temperature | 180 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 39191019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
