51587-17-66-09 | Volz

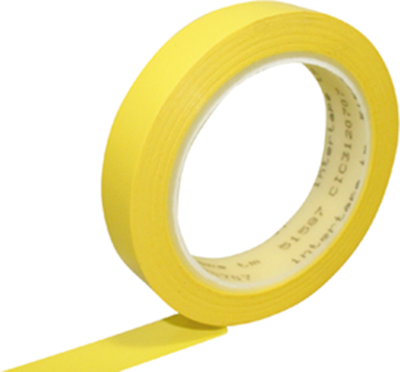

Electronics adhesive tape, 9 x 0.056 mm, polyester, yellow, 66 m, 51587-17-66-09
Unit Price (€ / pc.)
5.3074 € *
Available: 5 pcs.
Leadtime: On Request **
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
10 pcs.
4.6767 €
100 pcs.
4.0936 €
250 pcs.
3.9389 €
1000 pcs.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electricians' adhesive tapes, type Volz IPG™ 51587.
Good resistance against chemicals, solvents and dampness, good electrical insulation properties; Substrate: polyester foil. Adhesive compound: rubber, hot-curing. Maximum tensile strength: 110 N/25 mm. Substrate thickness: 25 µm (1.0 mil). Total thickness: 56 µm (2.2 mil). Elongation at fracture: 100 %. Adhesive strength (steel): 13.7 N/25 mm. Dielectric strength: 5000 V. Insulation class: B, 130 °C. Surface resistance: 10^6 ohm. Inflammability class: BU1. Certifications: UL.
Type: 51587-17-66-09, 9.0 mm, yellow, 66 m roll
Technical specifications
| Width | 9 mm | |
| Thickness | 0.056 mm | |
| Colour | gelb | |
| Adhesive cement | Naturkautschuk | |
| Length | 66 m | |
| Material | Polyester | |
| max. operating temperature | 130 °C | |
| Product type | Elektronik Klebeband |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39191019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
