51588-00-66-12 | Volz

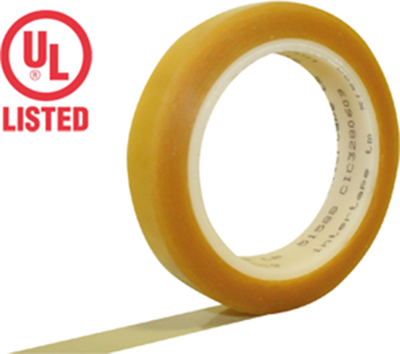

Electronic adhesive tape, 12 x 0.056 mm, polyester, transparent, 66 m, 51588-00-66-12
Unit Price (€ / pc.)
7.7469 € *
Available: 10 pcs.
Leadtime: 3 Weeks **
Total Price:
7.75 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7469 €
6 pcs.
6.9734 €
12 pcs.
6.3070 €
24 pcs.
5.7120 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electricians' adhesive tapes transparent, type Volz IPG™ 51588.
Good resistance against chemicals, solvents and dampness, good electrical insulation properties; Substrate: polyester foil. Adhesive compound: rubber, hot-curing. Maximum tensile strength: 110 N/25 mm. Substrate thickness: 25 µm (1.0 mil). Total thickness: 56 µm (2.2 mil). Elongation at fracture: 100 %. Adhesive strength (steel): 13.7 N/25 mm. Dielectric strength: 5000 V. Insulation class: B, 130 °C. Surface resistance: 10^6 ohm. Inflammability class: BU1. Certifications: UL.
Type: 51588-00-66-12, 12 mm, transparent, 66 m roll
Technical specifications
| Version | electronics adhesive tape | |
| Width | 12 mm | |
| Thickness | 0.056 mm | |
| Colour | transparent | |
| Adhesive cement | natural rubber | |
| Length | 66 m | |
| Material | polyester | |
| max. operating temperature | 130 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39191019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
