HD67117 | Wachendorff

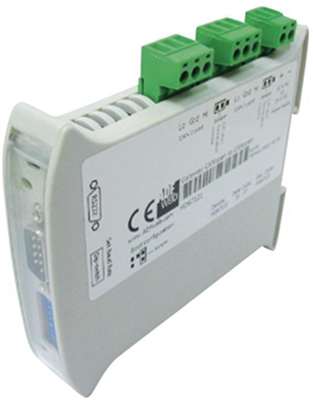

CAN Bus Repeater, type Wachendorff HD671.

Facilitates extension of the bus segment and number of nodes, electrically isolated CAN branches, protocol-independent, DIP switch for setting different baud rates, DIN rail mount; Supply voltage: 24 VDC 200 mA, 12 to 18 VAC 200 mA 50/60 Hz. Interfaces: 2 x CAN 2.0, max. bus length: 5000 m for 10 kbps, 25 m for 1.0 Mbps. LED: 1 x power, 2 x signal. Standard: ISO 11898. Operating temperatures: –20 to +70 °C. Dimensions: D 120, W 23, H 107 mm.

Type: HD67117, for CAN 2.0A, CANopen
