LD400400 | Wachendorff

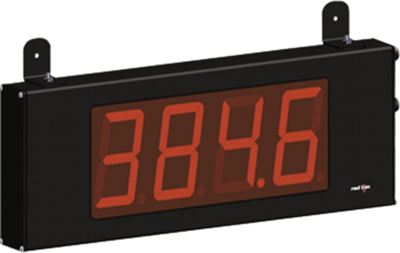

Large counter and tachometer displays, industrial standard, type Wachendorff LD.

With 57 or 101 mm red LED display, dimmable; Input: NPN, PNP sensors, CMOS, TTL. Potential-free contacts and permanent magnet sensors. Power supply: 85 to 250 VAC, 50/60 Hz, 14 VA or 11 to 16 VDC, 400 mA. Sensor power: 11 to 16 VDC, 50 mA (only for 230 VAC operation). Case: black painted aluminum with mounting brackets. Degree of protection: IP 65 all-round.

Counter, type LD.

Can be used as batch counter

Technical attributes (type, digits, digit height, dimensions (W x H, D = 57.2 mm), weight): LD400400, 4-digit, 101 mm, 508 x 200 mm, 3.63 kg
