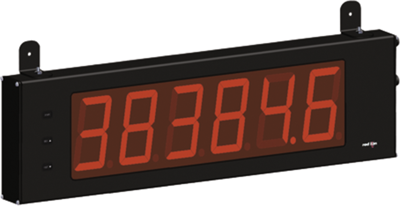

LD4006P0 | Wachendorff

Large counter and tachometer displays, industrial standard, type Wachendorff LD.

With 57 or 101 mm red LED display, dimmable; Input: NPN, PNP sensors, CMOS, TTL. Potential-free contacts and permanent magnet sensors. Power supply: 85 to 250 VAC, 50/60 Hz, 14 VA or 11 to 16 VDC, 400 mA. Sensor power: 11 to 16 VDC, 50 mA (only for 230 VAC operation). Case: black painted aluminum with mounting brackets. Degree of protection: IP 65 all-round.

Counters and tachometers, type LD.

Dual function as counter/tachometer. With relay output and RS-232/RS-485 interface. Both counters and tachometers are scalable independently of each other. Freely adjustable decimal point.

Technical attributes (type, digits, digit height, dimensions (W x H, D = 57.2 mm), weight): LD4006P0, 6-digit, 101 mm, 660.4 x 200 mm, 4.76kg
