WK109LV0 | Wachendorff

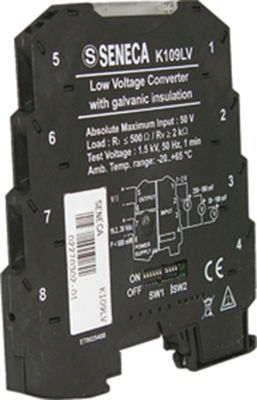

Isolating converters, type Wachendorff WK109.

For isolating and converting signals to a different format. With 3-way galvanic isolation; Operating voltage: 19.2 to 30 VDC. Current consumption: max. 21 to 25 mA. Insulation: 1.5 kV (50 Hz, 1.0 min.). Adjustment by means of DIP switch. Mounting: 35 mm DIN rail. Connections: terminals and/or WK BUS. Useful life: > 500000 h. Operating temperatures: –20 to +65 °C. Degree of protection: IP 20. Certifications: CE, EN 50081, EN 50082-2, EN 61010-1, EN 60742. Dimensions: H 93.1, W 6.2, D 102.5 mm

For current/voltage, type WK109LV0.

Converts mV signals generated by a shunt to a V or mA standard signal; Input: max. ±2000 mV. Output: 0/4.0 to 20 mA, 0 to 10 VDC, 10 to 0 VDC, 0 to 15/30 VDC or 0 to 5.0 VDC. Tolerance: max. ±0.1%. Other functions: determination of square root, tank linearization, signal inversion, program shutdown.

Type: WK109LV0, shunt V/I converter
