CUB4V00B | Wachendorff

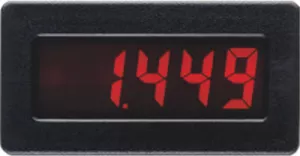

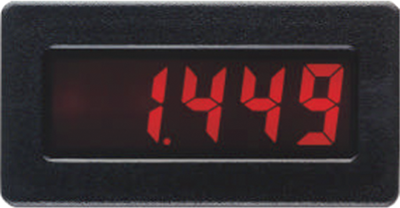

Display instrument, freely scaleable, CUB4V00B
Order No.: 19K8800
EAN: 4099891454319
MPN:
CUB4V00B
Unit Price (€ / pc.)
198.73 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
3 1/2-digit display, 15 mm height
Display range: ±1999, scalable
Measuring ranges: ±199.9 mV DC, ±1.999 VDC, ±19.99 VDC and 199.9 VDC. Measuring range and decimal point adjustment via DIP switch. Automatic zero adjustment and polarity display
Measuring rate: 2.5 measurements/s
Tolerance: ±0.1% + 1 digit
Degree of protection: dust-proof and jet water-proof to IP 65 at the front
Case: plastic
Dimensions: W 75, H39, D50 mm
Control panel cutout: 68 x 33 mm
Operating voltage: 9.0 to 28 VDC, 4.0/50 mA (standard LCD/backlit).
Technical specifications
| AC bzw. DC-Messung möglich | DC | |
| Breite | 50 mm | |
| Breite des Ausschnitts | 33 mm | |
| Einbautiefe | 50 mm | |
| Höhe | 39 mm | |
| Höhe des Ausschnitts | 68 mm | |
| max. Spannung | 199.9 V | |
| min. Spannung | 1.999 V | |
| Montage | Snap-in |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 90318080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
