750-484/000-001 | WAGO

Analog module for series 750, Inputs: 2, (W x H x D) 24 x 100 x 67.8 mm, 750-484/000-001

Order No.: 45P8006
EAN: 4055143766654
MPN:
750-484/000-001
Series: 750

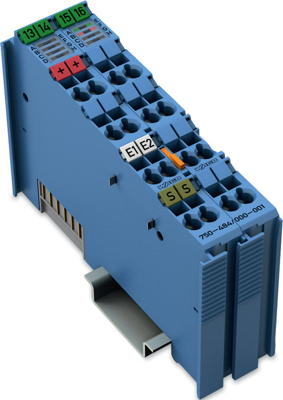

750-484/000-001 WAGO Analog Modules Image 1
750-484/000-001 WAGO Analog Modules Image 2
Image may differ
Unit Price (€ / pc.)
749.70 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
749.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
749.70 €

2-channel analog input, 750-484/000-001, WAGO

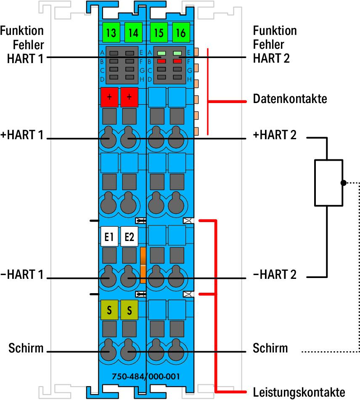

This analog input module connects two field-side signal conditioners equipped with a HART interface that are to be used in hazardous areas of Zone 0+1. The module supplies signal conditioners, reads process values via analog interface, and enables HART communication for configuring and importing dynamic variables. The measurement input is equipped with current limitation, which limits the current to 25 mA. This module powers 2-wire signal conditioners without dedicated power supply.

Technical specifications
Number of analogue inputs 2
Version Analoges Eingangsmodul
Width 24 mm
Suitable for Serie 750
Height 100 mm
Assembly DIN-Schiene
Depth 67.8 mm
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
