787-1712 | WAGO

Power supply, 24 VDC, 2.5 A, 60 W, 787-1712

Order No.: 25K4245
EAN: 4055143372466
MPN:
787-1712
Series: 787
787-1712 WAGO Built-In Power Supplies
Image may differ
Unit Price (€ / pc.)
70.2100 € *
Available: 1 pcs.
Leadtime: 6 Weeks **
Total Price:
70.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
70.2100 €

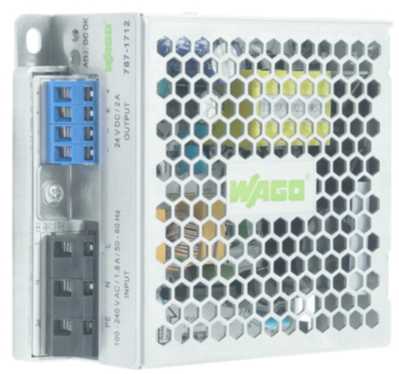

Primary switched mode power supply 787-1712 EPSITRON ECO Power from WAGO

  • Primary switched mode power supply
  • Self-cooling due to natural convection in horizontal mounting position
  • Encapsulated, for control cabinet installation
  • Parallel switchable, series switchable
  • Galvanically isolated output voltage
  • Mounting on mounting rail 35 possible in different positions
  • Direct mounting on mounting plate possible by means of screw connection
Technical specifications
Number of outputs 1
Output current 2.5 A
Output voltage DC 24 VDC
Input voltage AC 100-240 VAC
Power 60 W
efficiency 88 %
Degree of protection (IP) IP20
Length 99 mm
Width 40 mm
Height 90 mm
Depth 99 mm
Logistics
Country of origin CN
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
