787-1722 | WAGO
Power supply, 22-26 VDC, 2.1 A, 240 W, 787-1722
Unit Price (€ / pc.)
112.6454 € *
Available: 0 pcs.
Leadtime: On Request **

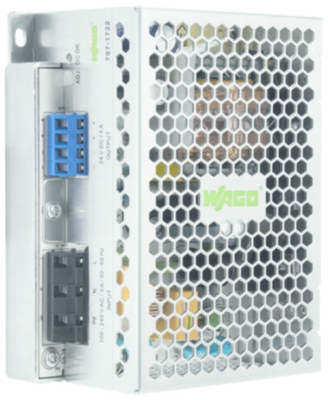

Switched-mode power supply, 787-1722, WAGO
Switched-mode power supply, Eco, 1-phase, 24 VDC output voltage, 5 A output current, DC-OK LED.
Features
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Suitable for both parallel and series operation
- DIN-35 rail mountable in different positions
- Direct installation on mounting plate via cable grip
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 22-26 VDC | |
| Output current | 2.1 A | |
| Width | 60 mm | |
| Input voltage AC | 90-264 VAC | |
| Height | 130 mm | |
| Length | 99 mm | |
| Power | 240 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 99 mm | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
