750-325 | WAGO

CC-Link fieldbus coupler, 24 VDC, 750-325

Order No.: 44P5215
EAN: 4055143597449
MPN:
750-325
Series: 750
WAGO

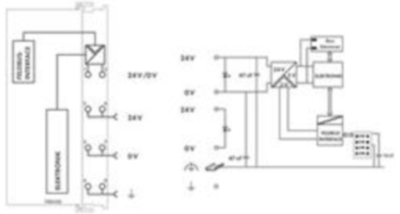

750-325 WAGO Bus coupler Image 1

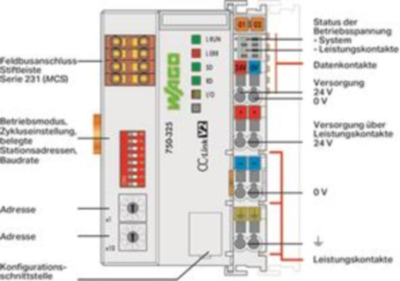

750-325 WAGO Bus coupler Image 2

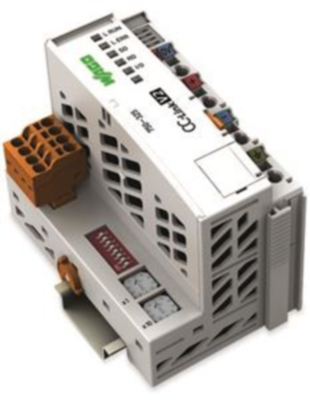

750-325 WAGO Bus coupler Image 3
Image may differ
Unit Price (€ / pc.)
461.0893 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
461.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
461.0893 €

Fieldbus coupler, 750-325, WAGO

This fieldbus coupler connects the WAGO I/O System as a slave to the CC-Link fieldbus, it supports the CC-Link protocol versions V1.1. and V2.0. The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules. The process image can be transferred via the CC‐Link fieldbus to the memory of the control system and is divided into two data zones containing the data received and the data to be sent.

Technical specifications
Version Fieldbus coupler
Width 61.5 mm
Data transmission rate 10000000 mb/s
Height 100 mm
Interfaces CC-Link
Voltage 24 VDC
Depth 71.9 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead
