750-337 | WAGO
CANopen fieldbus coupler, 24 VDC, 750-337
Unit Price (€ / pc.)
363.7354 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

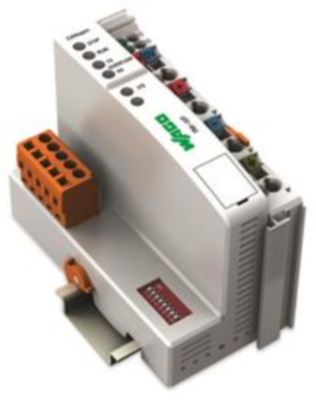

Fieldbus coupler, 750-337, WAGO
This fieldbus coupler connects the WAGO I/O System as a slave to the CANopen fieldbus. Data is transmitted via PDOs and SDOs. The device detects all connected I/O modules and creates a local process image. Analog and specialty module data is sent via words and/or bytes, digital data is sent bit by bit. The local process image is divided into two data zones containing the data received and the data to be sent.
Technical specifications
| Ausführung | Feldbuskoppler | |
| Schnittstellen | CANopen | |
| Datenübertragungsrate | 1000000 mb/s | |
| Spannung | 24 VDC | |
| Breite | 50.5 mm | |
| Höhe | 100 mm | |
| Tiefe | 71.1 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85176200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Tetrabrombisphenol A (TBBPA), Blei |
