750-338/040-000 | WAGO
CANopen fieldbus coupler, 24 VDC, 750-338/040-000
Unit Price (€ / pc.)
535.4524 € *
Available: 0 pcs.
Leadtime: On Request **

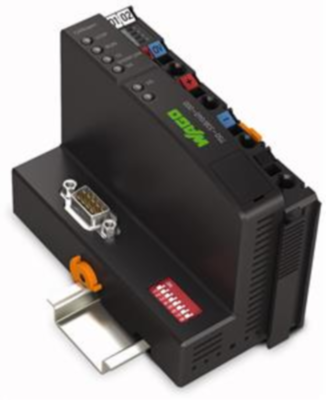

Fieldbus coupler, 750-338/040-000, WAGO
This fieldbus coupler connects the WAGO I/O System as a slave to the CANopen fieldbus. Data is transmitted via PDOs and SDOs. The device detects all connected I/O modules and creates a local process image. Analog and specialty module data is sent via words and/or bytes, digital data is sent bit by bit. The local process image is divided into two data zones containing the data received and the data to be sent.
Features
- An extended temperature range
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Technical specifications
| Version | Fieldbus coupler | |
| Width | 50.5 mm | |
| Data transmission rate | 1000000 mb/s | |
| Height | 100 mm | |
| Interfaces | CANopen | |
| Voltage | 24 VDC | |
| Depth | 71.1 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
