750-343 | WAGO

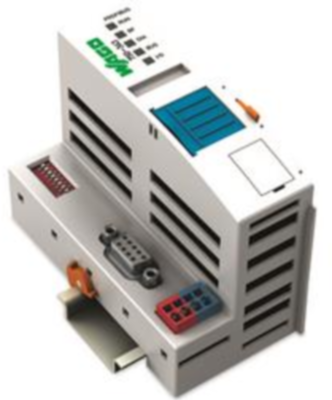

Fieldbus coupler, 750-343, WAGO

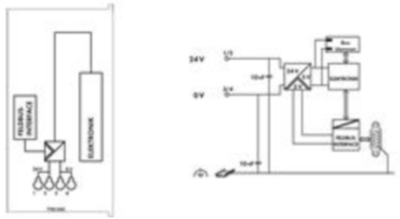

The ECO fieldbus coupler is designed for applications with a low data width in the process image. These are primarily applications that use digital process data or only low volumes of analog process data. The system supply is provided directly by the coupler and field supply is provided via a separate supply module. When initializing, the coupler determines the node's module structure and creates the process image of all inputs and outputs. In order to optimize addresses, I/O modules with a bit width smaller than eight are grouped in one byte.
