787-1664/000-100 | WAGO

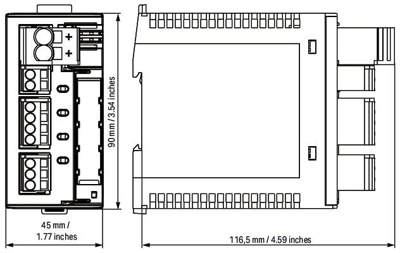

Electronic circuit breaker, 4 pole, 10 A, 500 V, (W x H x D) 45 x 90 x 115.5 mm, DIN rail, 787-1664/000-100
Unit Price (€ / pc.)
257.3732 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

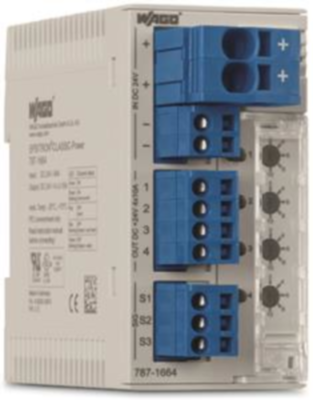

Electronic circuit breaker, 787-1664/000-100, WAGO

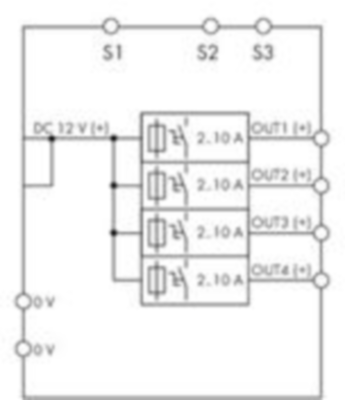

Electronic circuit breaker, 4-channel, Nominal input voltage: 12 VDC, Adjustable 2-10 A, Communication capability.
Features
- Space-saving ECB with four channels
- Switch-on capacity > 50000 μF per channel
- One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
- Time-delayed switching of channels
- Tripped message
- Status message for each channel via pulse sequence
- Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
Technical specifications
| Breite | 45 mm | |
| Dauerstrom | 10 A | |
| Höhe | 90 mm | |
| Isolationsspannung | 500 V | |
| Montage | DIN-Schiene | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP20 | |
| Tiefe | 115.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85363010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
