262-140 | WAGO
2-wire terminal block Ex e II, 10 pole, pitch 7 mm, 0.5-4.0 mm², AWG 20-12, straight, 23 A, 550 V, spring-cage connection, 262-140
Unit Price (€ / pc.)
8.2467 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.25 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2467 €
10 pcs.
7.5922 €
50 pcs.
6.9020 €
100 pcs.
6.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale

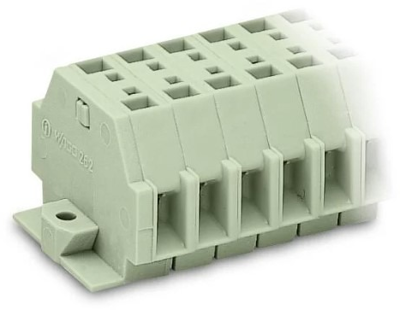

2-Conductor terminal strip, 262-140, Wago
2-conductor terminal strip Ex e II with mounting flanges for screw and similar mounting types Mounting hole Ø 3.2 mm with mounting foot 209-123 also suitable on TS 35 for Ex e II applications 10-pole light gray
Technical specifications
| AWG cross-section | AWG 20-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Rated current | 23 A | |
| Pin number | 10 pole | |
| Grid | 7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
