262-237 | WAGO

4-wire terminal block Ex e II, 7 pole, pitch 12 mm, 0.08-4.0 mm², AWG 28-12, straight, 30 A, 550 V, spring-cage connection, 262-237

Order No.: 43P9659
EAN: 4044918639071
MPN:
262-237
Series: 0262
WAGO

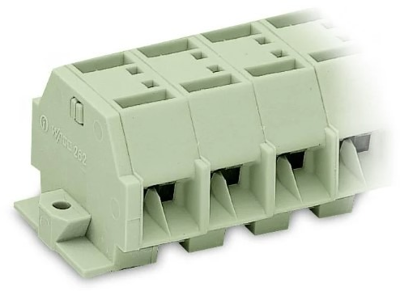

262-237 WAGO Connecting Blocks Image 1
262-237 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.5926 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.5926 €

4-Conductor terminal strip, 262-237, Wago

4-conductor terminal strip Ex e II with mounting flanges for screw and similar types of fastening Mounting hole Ø 3.2 mm with mounting foot 209-123 also suitable on TS 35 for Ex e II applications 7-pole light gray

Technical specifications
AWG cross-section AWG 28-12
Design straight
Contact connection spring-cage connection
Cable cross-section 0.08-4.0 mm²
Rated voltage 550 V
Rated current 30 A
Pin number 7 pole
Grid 12 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
