262-242 | WAGO
4-wire terminal block Ex e II, 12 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-242
Unit Price (€ / pc.)
11.186 € *
Available: 0 pcs.
Leadtime: On Request **

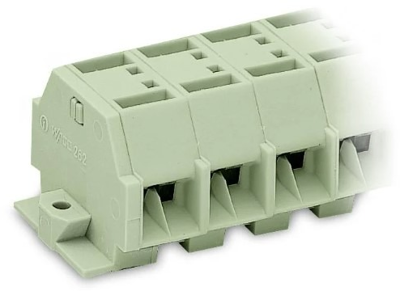

4-Conductor terminal strip, 262-242, Wago
4-conductor terminal strip Ex e II with mounting flanges for screw and similar types of fastening Mounting hole Ø 3.2 mm with mounting foot 209-123 also suitable on TS 35 for Ex e II applications 12-pole light gray
Technical specifications
| AWG cross-section | AWG 20-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Rated current | 30 A | |
| Pin number | 12 pole | |
| Grid | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
