262-261 | WAGO
4-wire terminal strip, 11 pole, pitch 12 mm, 0.08-4.0 mm², AWG 28-12, straight, 32 A, 630 V, spring-cage connection, 262-261
Unit Price (€ / pc.)
9.9365 € *
Available: 0 pcs.
Leadtime: On Request **

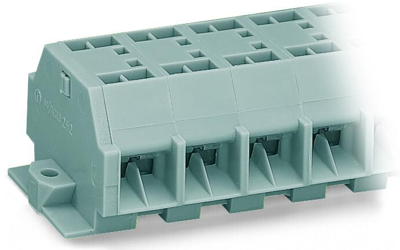

4-Conductor terminal strip, 262-261, Wago
4-conductor terminal strip with snap-in feet for sheet thickness 0.6 - 1.2 mm fixing hole Ø 3.5 mm also on alu rail 210-154 or with mounting foot 209-120 on TS 35 11-pole gray
Technical specifications
| AWG cross-section | AWG 28-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 32 A | |
| Pin number | 11 pole | |
| Grid | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
