262-281 | WAGO
4-wire end terminal Ex, 1 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-281
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2614 €
50 pcs.
1.1543 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale

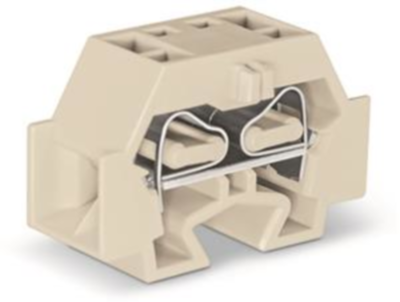

End terminal block, 262-281, WAGO
Space-saving, 4-conductor end terminal block, without push-buttons, suitable for Ex e II applications, without protruding snap-in mounting foot, 1-pole, for terminal strips with snap-in mounting feet, 4 mm², CAGE CLAMP, 4,00 mm², light gray.
Technical specifications
| AWG cross-section | AWG 20-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Rated current | 30 A | |
| Pin number | 1 pole | |
| Grid | 12 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
