264-180 | WAGO
2-wire terminal Ex e II, 1 pole, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-180
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9044 €
50 pcs.
0.8211 €
100 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale

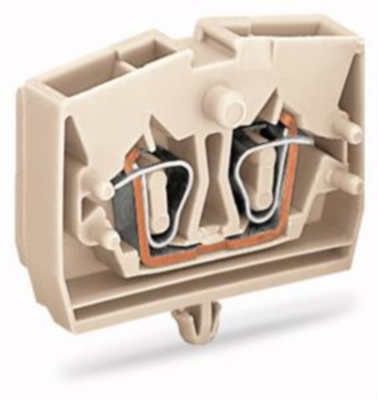

2-Conductor terminal block, 264-180, Wago
2-conductor terminal block Ex e II with snap-in foot for sheet thickness 0.6 - 1.2 mm mounting hole Ø 3.5 mm also on aluminum rail 210-154 or with mounting foot 209-120 on TS 35 suitable for Ex e II applications light gray
Technical specifications
| AWG cross-section | AWG 28-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 690 V | |
| Rated current | 23 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
