264-238 | WAGO
4-wire terminal block Ex e II, 8 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-238
Unit Price (€ / pc.)
8.4966 € *
Available: 0 pcs.
Leadtime: On Request **

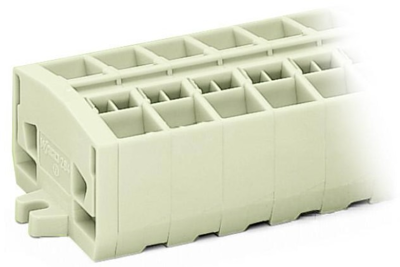

4-Conductor terminal strip, 264-238, Wago
4-conductor terminal strip Ex e II with mounting flanges for screw and similar types of fastening Mounting hole Ø 3.2 mm suitable for Ex e II applications 8-pole light gray
Technical specifications
| AWG cross-section | AWG 28-12 | |
| Design | straight | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 690 V | |
| Rated current | 23 A | |
| Pin number | 8 pole | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
