711-181 | WAGO
Transformer terminal, 1 pole, straight, 25 A, 800 V, spring-cage connection, 711-181
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
50 pcs.
0.8330 €
100 pcs.
0.7378 €
500 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

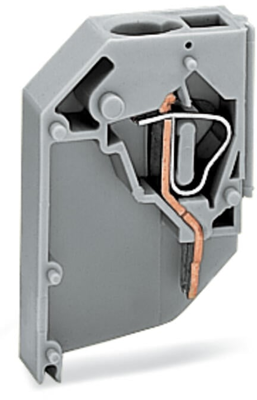

Transformer terminal block, 711-181, WAGO
The transformer terminals with article number 711-181 enable a quick and secure connection. These transformer clamps require a stripping length of 9 to 10 mm for the conductor connection. This product is equipped with CAGE CLAMP technology. The CAGE CLAMP universal connection provides you with a reliable and maintenance-free connection technology for connecting all types of conductors using a cage clamp. No pre-treatment of the conductors is necessary, for example by crimping on wire end ferrules. The dimensions are 7.5 x 35 x 23.5 mm in width x height x depth. With this single terminal block, 1 potential / 1 pole can be connected via the 1 terminal point.
Technical specifications
| Ausführung | Transformatorklemme | |
| Bauform | gerade | |
| Kontaktanschluss | Federkraftanschluss | |
| Nennspannung | 800 V | |
| Nennstrom | 25 A | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
