769-515/000-006 | WAGO
1-wire end module, 1 pole, pitch 5 mm, 0.08-4.0 mm², AWG 28-12, angled, 32 A, 500 V, spring-cage connection, 769-515/000-006
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Leadtime: On Request **

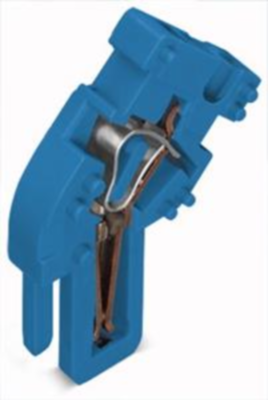

Female connector, 769-515/000-006, WAGO
End module for 1-conductor female connector, angled, CAGE CLAMP, 4 mm², pin spacing 5 mm, 1-pole, coding finger, 4,00 mm², blue.
Technical specifications
| Version | socket | |
| AWG cross-section | AWG 28-12 | |
| Design | angled | |
| Contact connection | spring-cage connection | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Pin number | 1 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
