862-1505 | WAGO

Name: 4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-1505
Brand: WAGO
SKU: 43P2624
Price: 3.43 EUR
Availability: OutOfStock

4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-1505

Order No.: 43P2624

EAN: 4044918509503

MPN:

862-1505

Series: 862

Image may differ

Key Specification:

Pin number 5 pole

Grid 12 mm

Cable cross-section 0.5-4.0 mm²

AWG cross-section AWG 20-12

Show 9 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.4272 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

3.43 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

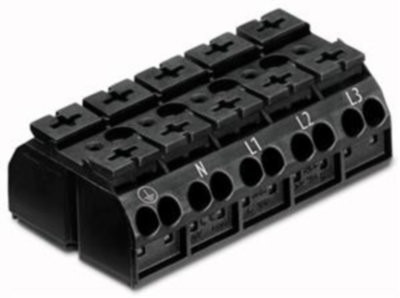

Terminal strip, 862-1505, WAGO

4-conductor chassis-mount terminal strip, without ground contact, PE-N-L1-L2-L3, 5-pole, for 3 mm ø screw and nut, 4 mm², 4,00 mm², black.

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 9 variations
