756-1203/060-100 | WAGO
TPU ethernet cable, Cat 5e, PROFINET, 4-wire, 0.34 mm², green, 756-1203/060-100
Unit Price (€ / pc.)
177.9407 € *
Available: 0 pcs.
Leadtime: On Request **

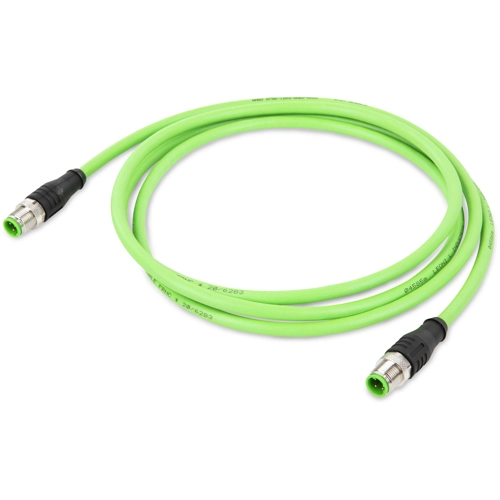

ETHERNET cable, 756-1203/060-100, WAGO

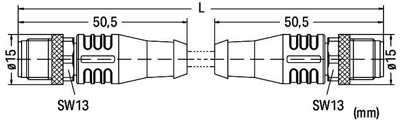

ETHERNET cable, M12D plug, Straight, M12D plug, Straight, 4-pole, Length: 10 m.
Features
- PUR GN, halogen-free
- CAT 5e ES
- Suitable for drag chains
- Silicon- and CFC-free
- High resistance to microbes, hydrolysis, oil, ozone, chemicals and UV radiation
Technical specifications
| Core insulation material | PE | |
| Number of cores | 4 | |
| Version | ethernet cable | |
| Outer diameter | 7.5 mm | |
| Bussystem | PROFINET | |
| Colour | green | |
| Halogen free | Yes | |
| Category | Cat 5e | |
| Cable material | copper, bright | |
| Cable cross-section | 0.34 mm² | |
| Material | TPU | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
