787-2801 | WAGO

DC converter, 10-30 VDC, 2.5 W, 1 output, 5 VDC, 82.5 % efficiency, 787-2801

Order No.: 45P0670
EAN: 4055143407052
MPN:
787-2801
Series: 787
787-2801 WAGO DC/DC Converters Image 1
787-2801 WAGO DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
70.8764 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
70.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
70.8764 €

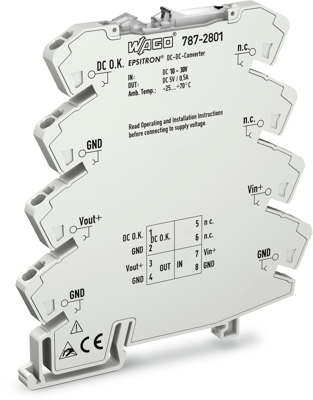

DC/DC converter, 787-2801, WAGO

DC/DC converter, 24 VDC input voltage, 5 VDC output voltage, 0.5 A output current, DC OK contact

Features

  • DC/DC converter in a compact 6 mm housing
  • Output voltage monitoring via DC OK signal output

Applications

  • Comprehensive range of approvals for multiple applications
Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 5 VDC
Ausgangsstrom 500 mA
Bauform Modul

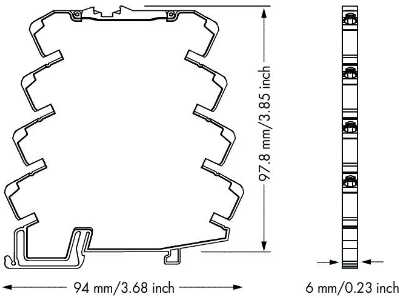

Breite 6 mm
Eingangsspannungsbereich 10-30 VDC
Höhe 94 mm
Länge 97.8 mm
Leistung 2.5 W
Wirkungsgrad 82.5 %
Logistics
Ursprungsland DE
Zolltarifnummer 85044083
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Bortrioxid, Bleimonoxid (Bleioxid), Blei
