267-114 | WAGO

Socket, 4 pole, Push-wire connection, 1.0 mm², white, 267-114

Order No.: 43P9960
EAN: 4044918499507
MPN:
267-114
Series: 267
WAGO

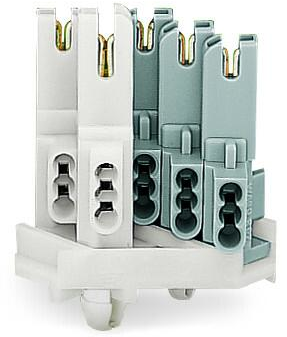

267-114 WAGO Device Connectors Image 1

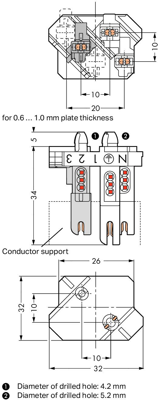

267-114 WAGO Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.5093 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
6.5093 €

Socket, 267-114, WAGO

Female connector, without ground contact, with snap-in mounting feet, 4-pole, 1.00 mm², white.

Features

  • Future system expansions possible
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class per UL94: V0
  • Compact design
Technical specifications
Connection Push-wire connection
Version socket
Colour white
Cable cross-section 1.0 mm²
Rated voltage IEC 500 V
Rated current IEC 6 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 4 pole
Fuse holder present No
Pin temperature 105 °C
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
